| Brand Name: | KONIDA |
| MOQ: | 1SET |
| Price: | 5000dollar |
| Payment Terms: | T/T in advance |
disk capacity 320 GB
control panel light background LCD display
100 sheets per supply tray

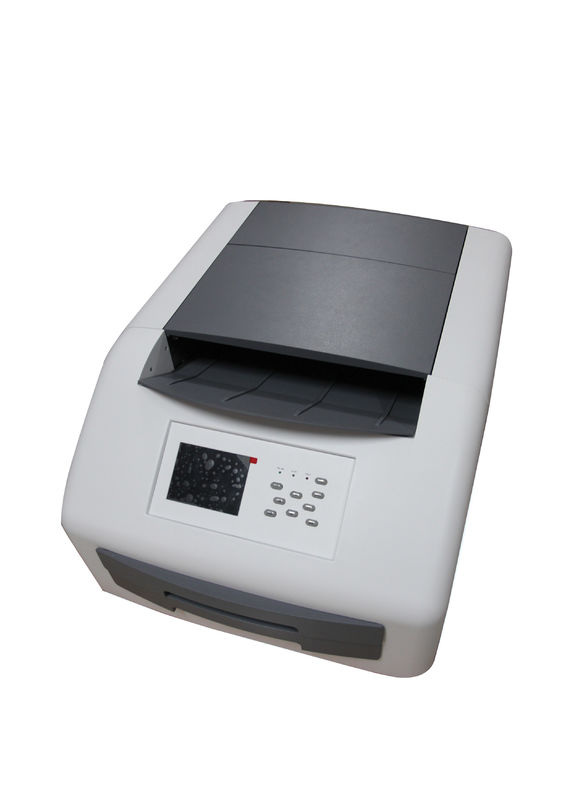

| KND-8900 MEDICAL FILM PRINTER | |
| KND-8900 medical film printer is a kind of thermal imaging printer which can output the imagine in dicom form from internet |
|
|
equipment characteristics and technical parameters |
|
| printing technique | direct thermal imaging(easy daylight loading) |
| geometrical | 320dpi (12.6pixel/mm) |
| film throughput | 60sheets/hour(14*17), 90sheets/hour(8*10) |
| resolution | 12bit(4096 gradation) |
| film supply tray | 2 supply trays,100 sheets per supply tray |
| film output tray | 1 output tray, 50 sheets per output tray |
| film size | 8*10inch,14*17inch,and any size between them |
| film type | medical thermal film (blue or clear base) |
| film input cassette |
all the film prepackaged in factory sealed input cassette |
| port | 10/100base-T Ethemet(RJ-45) |
| interface | dicom |
| image format | dicom |
| image quality | use the built-in densitometer automatic calibration |
| image control | contrast/grayscale/polar/ratate/saturation/scale |
| control panel |
light background LCD display,display online, alarm,fault and state |
| key switch | power supply and menu navigation button |
| processor | intel |
| internal memory | 2 GB |
| disk capacity | 320 GB |
| power requirements | auto ranging 100-240V~50/60 HZ |
| weight | 40kg |
| size (mm*mm*mm) | 410*566*726 |
| work temperature | 15-30℃ |
| work humidity | 10%-70% |
| optimum temperature | 22.2℃ |
| humidity | 10%-80% |
| storage temperature | .-22 to 50℃ |
|
